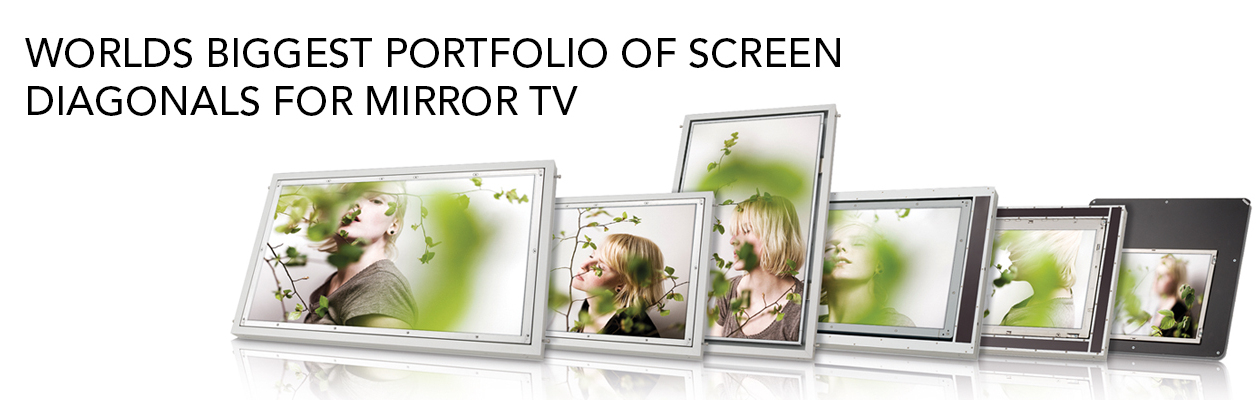

OUR SCREEN PORTFOLIO


All MIRROR IMAGE screens are custom-engineered technology to overcome the unique challenges of driving images through mirror and glass surfaces. MIRROR IMAGE is factory calibrated using a proprietary algorithm to deliver images through glass or mirrors. The elaborated unique mounting system (D.O.G. system architecture) accompanying all ad notam products are distinctively designed to suit all particularized placements behind any glass or mirror surfaces. There is no gap between MIRROR IMAGE and the glass/ mirror surface resulting in a crystal clear picture, and delivering a futuristic look as if the images are natives to the glass/ mirror.

Screen Model
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 15,000 Hours
Screen Diagonale 338 mm (13.3")
Picture Format 16:9
Physical resolution 1920 x 1080
Viewing Angle H 178° / V 178°
Brightness* 650 cd/m²
Contrast Typical: 1000:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 30,000 Hours
Screen Diagonale 483 mm (19.0")
Picture Format 16:9
Physical resolution 1366 x 768
Viewing Angle H 178° / V 178°
Brightness* 1000 cd/m²
Contrast Typical: 1000:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 15,000 Hours
Screen Diagonale 559 mm (22.0")
Picture Format 16:9
Physical resolution 1920 x 1080
Viewing Angle H 178° / V 178°
Brightness* 700 cd/m²
Contrast Typical: 1000:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 15,000 Hours
Screen Diagonale 686 mm (27.0")
Picture Format 16:9
Physical resolution 1920 x 1080
Viewing Angle H 178° / V 178°
Brightness* 800 cd/m²
Contrast Typical: 1000:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 15,000 Hours
Screen Diagonale 813 mm (32.0")
Picture Format 16:9
Physical resolution 1920 x 1080
Viewing Angle H 178° / V 178°
Brightness* 700 cd/m²
Contrast Typical: 1200:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 15,000 Hours
Screen Diagonale 1067 mm (42.0")
Picture Format 16:9
Physical resolution 3840 x 2160
Viewing Angle H 178° / V 178°
Brightness* 1000 cd/m²
Contrast Typical: 1300:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 30,000 Hours
Screen Diagonale 1245 mm (49.0")
Picture Format 16:9
Physical resolution 3840 x 2160
Viewing Angle H 178° / V 178°
Brightness* 1000 cd/m²
Contrast Typical: 1100:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 30,000 Hours
Screen Diagonale 1397 mm (55.0")
Picture Format 16:9
Physical resolution 3840 x 2160
Viewing Angle H 178° / V 178°
Brightness* 900 cd/m²
Contrast Typical: 1300:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 30,000 Hours
Screen Diagonale 1651 mm (65.0")
Picture Format 16:9
Physical resolution 3840 x 2160
Viewing Angle H 178° / V 178°
Brightness* 900 cd/m²
Contrast Typical: 1100:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 30,000 Hours
Screen Diagonale 1905 mm (75.0")
Picture Format 16:9
Physical resolution 3840 x 2160
Viewing Angle H 178° / V 178°
Brightness* 900 cd/m²
Contrast Typical: 1100:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 30,000 Hours
Screen Diagonale 2184 mm (86.0")
Picture Format 16:9
Physical resolution 3840 x 2160
Viewing Angle H 178° / V 178°
Brightness* 900 cd/m²
Contrast Typical: 1100:1
Specification download
Display Type TFT Thin Film Transistor
Backlight / Lifetime LED / 30,000 Hours
Screen Diagonale 2489 mm (98.0")
Picture Format 16:9
Physical resolution 3840 x 2160
Viewing Angle H 178° / V 178°
Brightness* 700 cd/m²
Contrast Typical: 1200:1
Specification download
  1. Value might vary depending on selected glass or mirror type.

LOW-POWER CONSUMPTION LCD/LED SCREENS

All ad notam screens are matching statutory regulations regarding energy efficiency classification.
